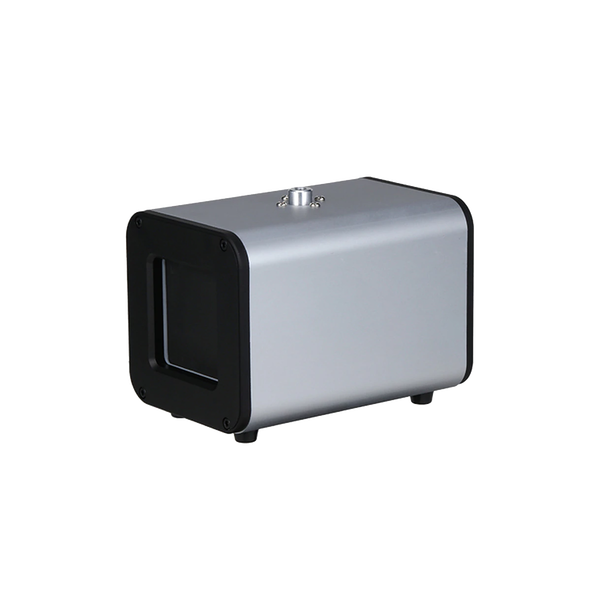

HYT-B66K
Human temperature measurement blackbody temperature reference unit.
Better known as "Blackbody", it is a certified instrument that, inserted into the shooting range, provides a constant and accurate temperature reference that the camera uses to self-calibrate and increase measurement accuracy. 220V CA.
For indoor use, it has a fan at the rear and is not insulated. It can be used outdoors as long as they are in a controlled situation and not leaving it fixed so that it does not suffer humidity or inclement weather.
- The intelligent temperature control meter is used to control the temperature with high precision and stability.
- The target surface is coated with high emissivity aviation coatings.
- Cost-effective.
Highlights
Functions
Accessories for HYT-B66K
Included as standard with HYT-B66K
Related products that work with the HYT-B66K
Technical Specifications
Parameters
- Working temperature
- Factory settings 35.0°C, 37.0°C ,40.0°C Environment temperature +5.0 50.0 adjustable
- Effective radiant surface
- 70mm×70mm
- Temperature resolution
- 0.1°C
- Temperature accuracy
- ±0.2℃(single point)
- Effective emissivity
- 0.97
- Temperature sensor
- Pt100
- Power supply
- 220VAC 50Hz 35W
- Net weight
- 1.8 kg
- Dimensions
- W110 mm× H120 mm ×D180 mm
- Ambient temperature/humidity
- 0℃℃~40 ℃℃/ ≤80%RH
